Mô tả chi tiết
|
|
Hãng sản xuất
|
MSI
|
|
Chủng loại
|

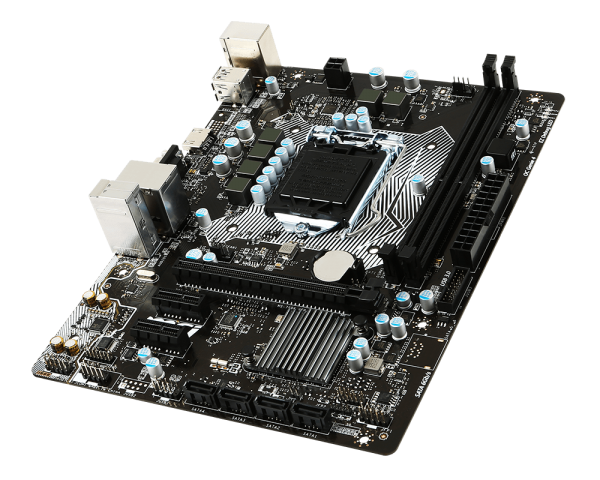

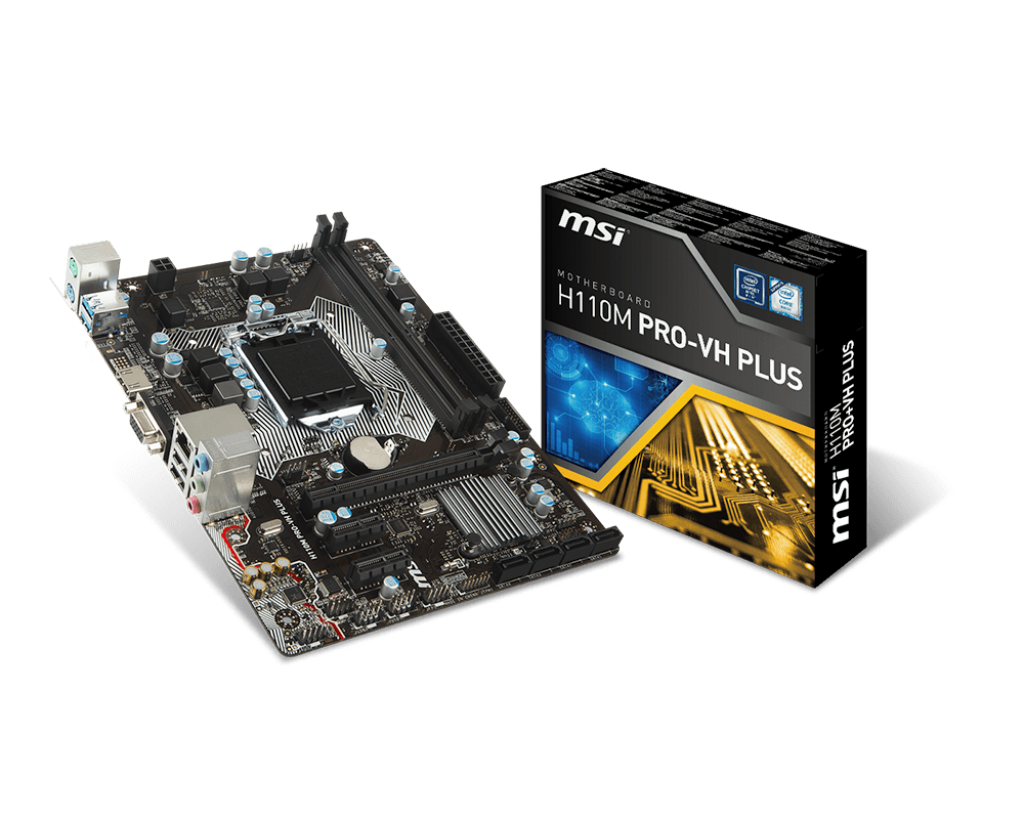

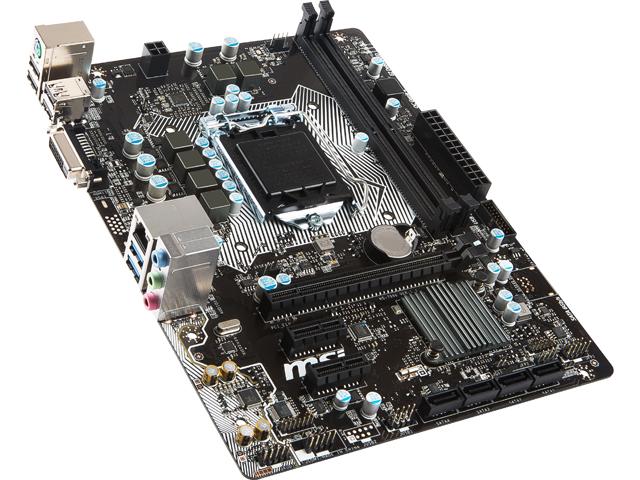

Mainboard MSI H110M PRO-VH
|
|
CPU hỗ trợ
|
Supports 6th Gen Intel® Core® i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
|
|
Chipset
|
Intel® H110 Express Chipset
|
|
Bộ nhớ trong
|
• 2 x DDR4 memory slots, support up to 32GB
- Supports DDR4 2133 MHz
• Dual channel memory architecture
• Supports Non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs
* DDR4 2133 MHz and higher memory modules will only run at maximum of DDR4 2133 MHz on XMP mode due to Intel® chipset limitation
|
|
Graphics
|
• 1 x HDMI™ ports, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
• 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
|
|
Âm thanh
|
• Realtek® ALC887 Codec
• 7.1-Channel High Definition Audio
|
|
Mạng
|
• 1 x Realtek RTL8111H Gigabit LAN controller
|
|
Khe mở rộng
|
• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 2.0 x1 slots
|
|
Chuẩn lưu trữ
|
Intel® H110 Chipset
• 4 x SATA 6Gb/s ports
|
|
Cổng giao tiếp trước và sau
|
- 1 x PS/2 keyboard/ mouse port
- 4 x USB 2.0 ports
- 2 x USB 3.1 Gen1 ports
- 1 x HDMI™ port
- 1 x VGA port
- 1 x LAN (RJ45) port
- 3 x audio jacks
|
|
USB
|
• Intel® H110 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connectors)
|
|
Kích thước
|
9.3 in. x 7.1 in. (23.5 cm x 18.0 cm) Micro-ATX Form Factor
|
