THÔNG SỐ KỸ THUẬT

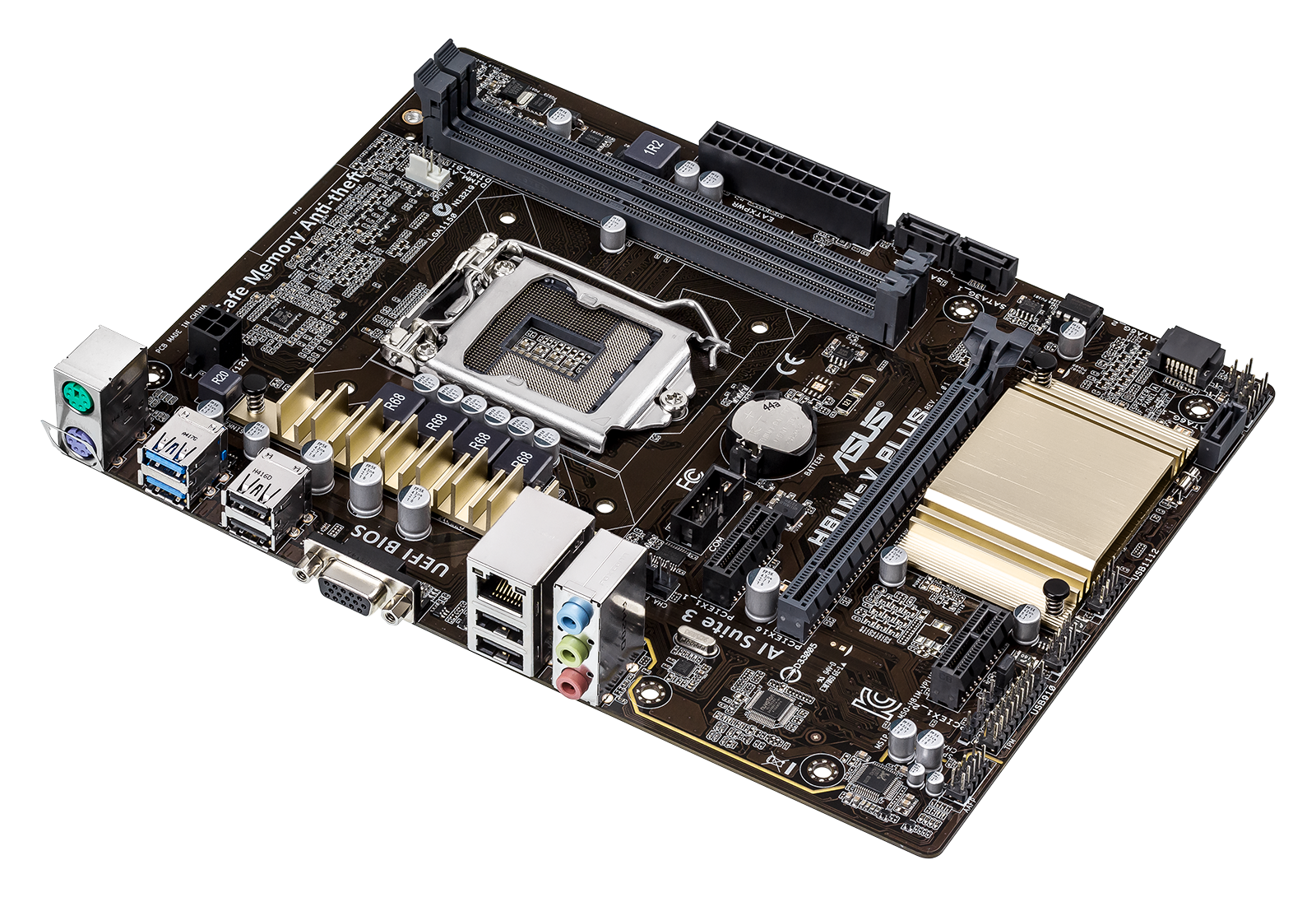

MAINBOARD PC ASUS TRAY H81
| CPU hỗ trợ |
Intel® Socket 1150 for the New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0 |
| Chipset |
Intel® H81 |
| RAM hỗ trợ |
4 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP) |
| Đồ họa tích hợp |
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : DVI/RGB ports
Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
| Âm thanh tích hợp |
SupremeFX 8-Channel High Definition Audio CODEC
Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
High quality 115 dB SNR stereo playback output
Audio Feature :
SupremeFX Shielding™ Technology
ELNA premium audio capacitors
Optical S/PDIF out port(s) at back panel
Audio amplifier: Provides the highest-quality sound for headphone and speakers |
| LAN |
Intel®, 1 x Gigabit LAN Controller(s) |
| Khe cắm mở rộng |
1 x PCIe 2.0 x16 (x16 mode, gray) |
| 3 x PCIe 2.0 x1 |
| 3 x PCI |
| USB |
Intel® H81 chipset :
2 x USB 3.0/2.0 port(s) (2 at back panel, blue)
Intel® H81 chipset :
8 x USB 2.0/1.1 port(s) (4 at back panel, )
ASMedia® ASM1042 controller :
2 x USB 3.0/2.0 port(s) (2 at mid-board) |
| Cổng kết nối phía sau |
1 x bàn phím PS / 2 (màu tím) |
| 1 x chuột PS / 2 (màu xanh) |
| 1 x DVI-D |
| 1 x D-Sub |
| 1 x cổng LAN (RJ45) |
| 2 x USB 3.0 (màu xanh) |
| 4 x USB 2.0 |
| 3 x giắc cắm âm thanh |
| Kích thước |
ATX Form Factor
12 inch x 8.4 inch ( 30.5 cm x 21.4 cm ) |
| Phụ kiện đi kèm |
Hộp / Sách hướng dẫn sử dụng / Đĩa Driver / Cable tín hiệu Sata / Chặn main |
