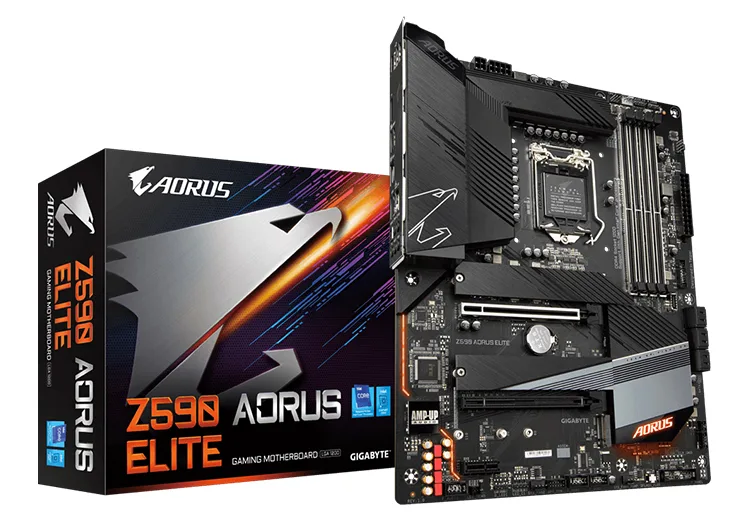

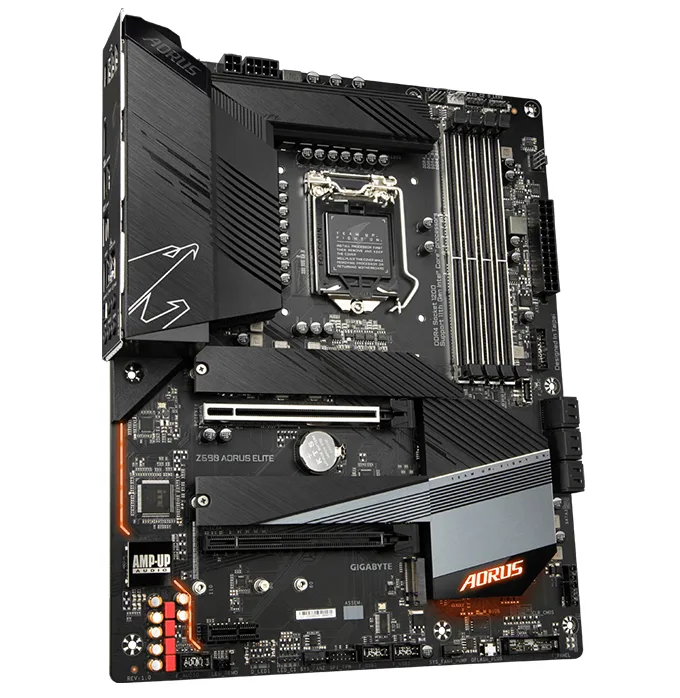

Bo mạch chủ Giga Z590-AORUS-ELITE : chipset Z590 LGA1200/4xDDR4 2133 /2*PCIE x16 + 3*PCIe x 1/6*SATA3 6Gb/s/2*M.2/Type-C/D

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

Z590 AORUS ELITE

CPU hỗ trợ

Intel

Chipset

Z590

RAM hỗ trợ

• 4 x DDR4 DIMM
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Khe cắm mở rộng

• 1 x PCI Express x16 slot, running at x16 (PCIEX16)
• 1 x PCI Express x16 slot, running at x4 (PCIEX4)
• 2 x PCI Express x1 slots

Ổ cứng hỗ trợ

CPU:
1 x M.2 connector
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2B_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
6 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 3 x system fan headers
7. 1 x system fan/water cooling pump header
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 6 x SATA 6Gb/s connectors
11. 3 x M.2 Socket 3 connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C^® header, with USB 3.2 Gen 2 support
15. 1 x USB 3.2 Gen1 header
16. 2 x USB 2.0/1.1 headers
17. 2 x Thunderbolt™ add-in card connectors
18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)
19. 1 x Clear CMOS jumper
20. 1 x Q-Flash Plus button

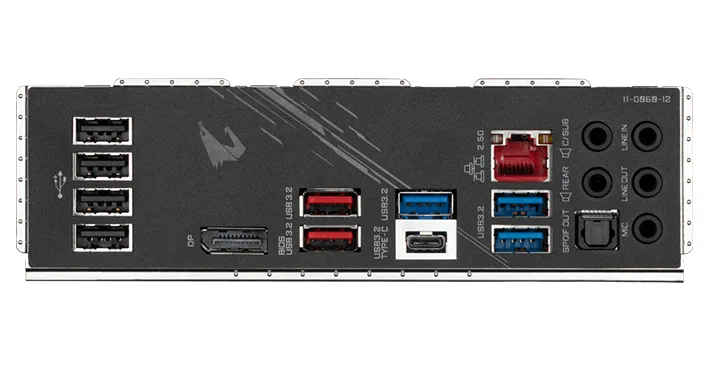

Cổng kết nối (Back Panel)

1. 1 x USB Type-C^® port, with USB 3.2 Gen 2x2 support
2. 2 x USB 3.2 Gen 2 Type-A ports (red)
3. 3 x USB 3.2 Gen 1 ports
4. 4 x USB 2.0/1.1 ports
5. 1 x DisplayPort
6. 1 x RJ-45 port
7. 1 x optical S/PDIF Out connector
8. 5 x audio jacks

LAN / Wireless

Realtek^® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Kích cỡ

ATX Form Factor; 30.5cm x 24.4cm
