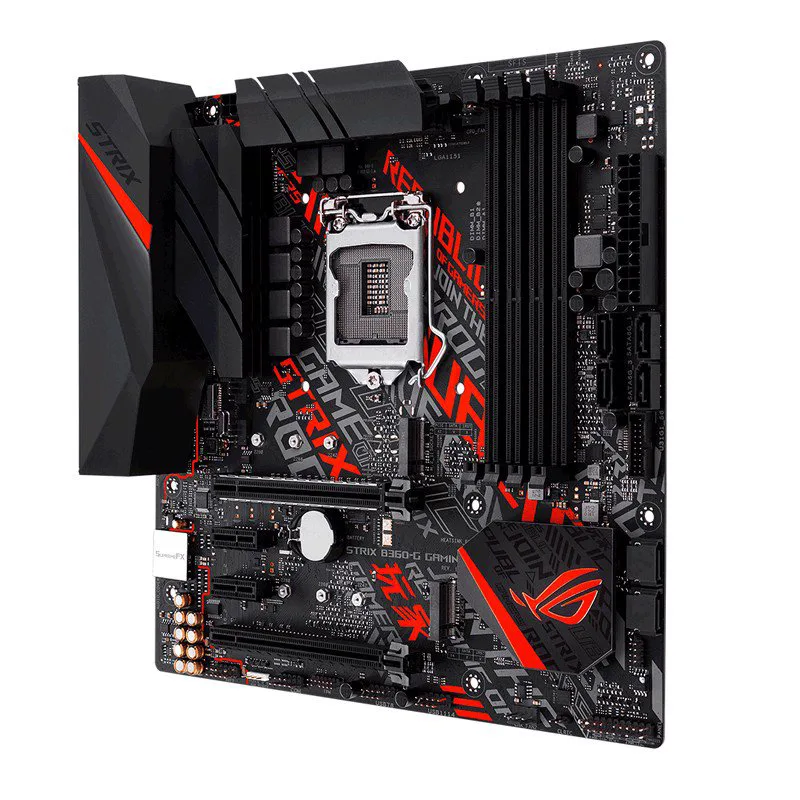

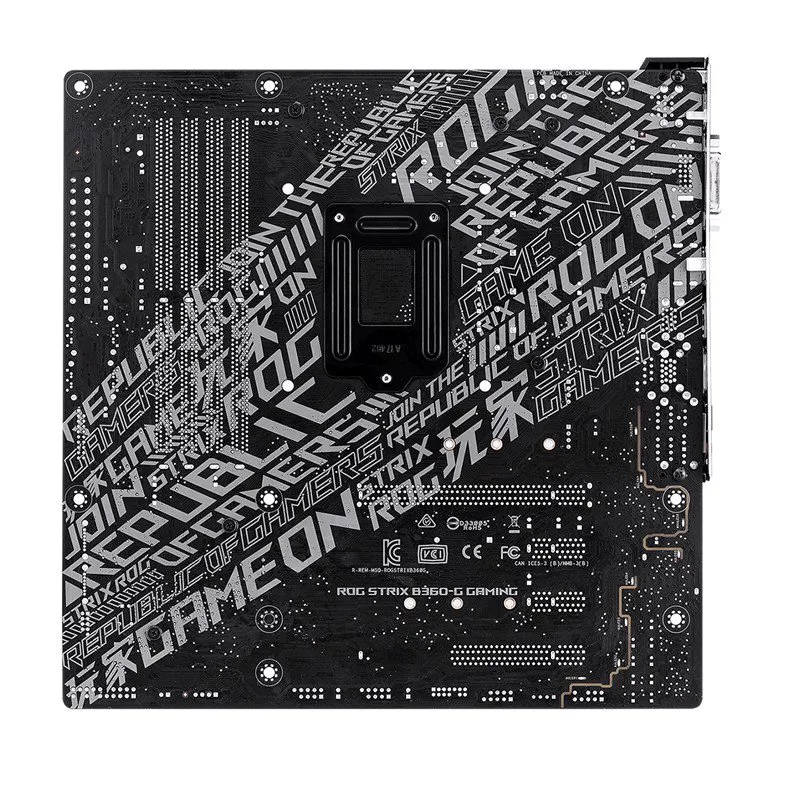

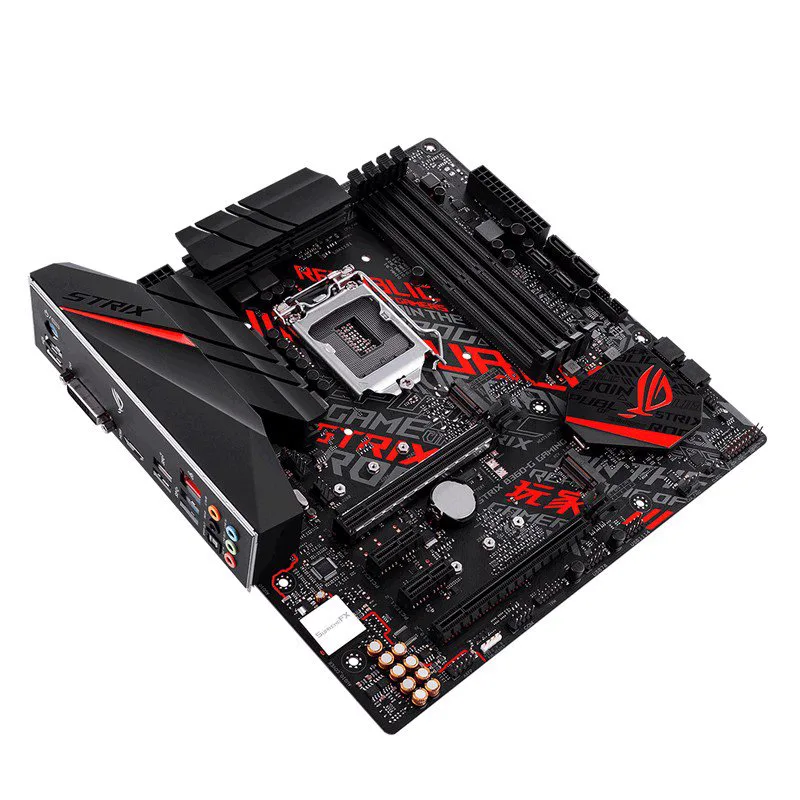

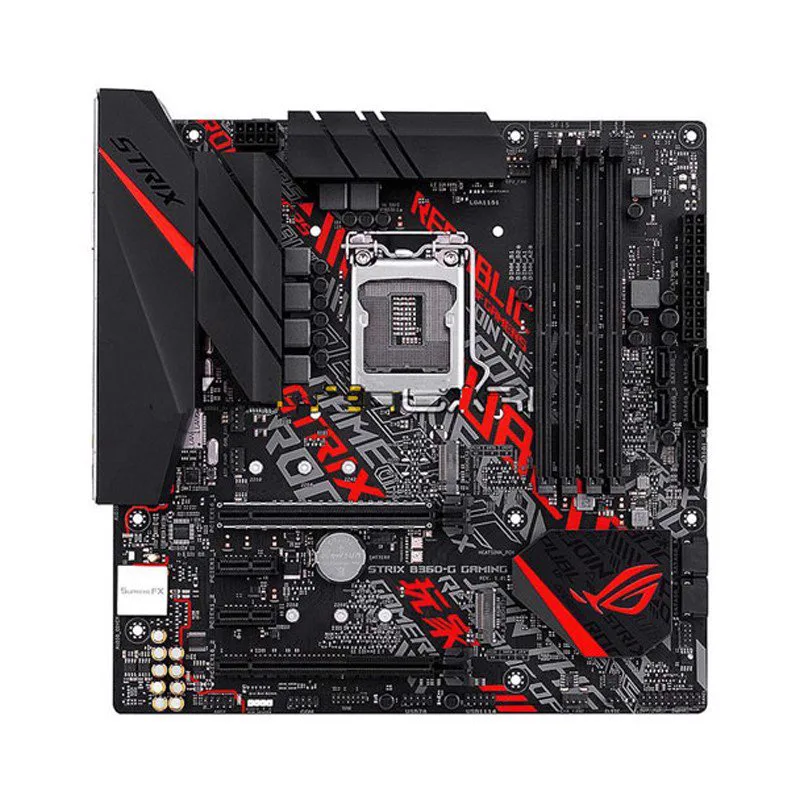

Mainboard ASUS ROG STRIX B360-G GAMING

Tên gọi

ASUS ROG STRIX B360-G Gaming

CPU hỗ trợ

Intel® Socket 1151 for 8th Generation Core™ Processors


Chipset / Socket

Intel® B360

Bộ nhớ (RAM)

• 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered, Register Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)

Công nghệ đa GPU

• AMD 2-Way CrossFireX Technology

Khe cắm mở rộng

• 1 x PCIe 3.0 x16
• 1 x PCIe 3.0 x16 (max at x4 mode)
• 2 x PCIe 3.0/2.0 x1

LAN / Wireless

• Intel® I219V

Âm thanh

• ROG SupremeFX 8-Channel HD Audio CODEC S1220A

Cổng kết nối (Internal)

• 1 x AAFP connector
• 1 x Aura RGB Strip Header
• 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 2 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
• 1 x TPM header
• 1 x COM port(s) connector(s)
• 6 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s)
• 2 x Chassis Fan connector(s)
• 1 x AIO_PUMP connector
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin EATX 12V Power connectors
• 1 x Front panel connector(s)
• 1 x Clear CMOS jumper(s)

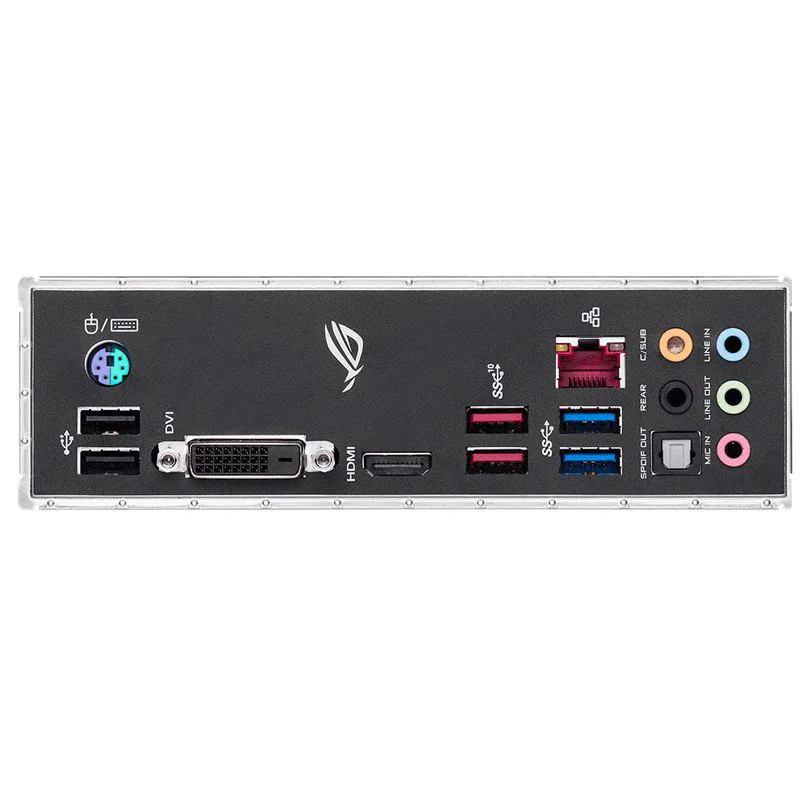

Cổng kết nối (Back Panel)

• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x DVI
• 1 x HDMI
• 2 x USB 3.1 Gen 2
• 1 x Optical S/PDIF out
• 5 x Gold-plated audio jacks
• 2 x USB 3.1 Gen 1 (blue)
• 2 x USB 3.1 Gen 2 (red)Type-A
• Anti-surge LAN (RJ45) port

Công nghệ độc quyền

• ROG RAMCache II
• ROG CloneDrive
• Pre-mounted I/O Shield
• Overwolf
• GameFirst IV

Phụ kiện đi kèm

• User's manual
• 2 x SATA 6Gb/s cable(s)
• 1 x M.2 Screw Package
• 1 x Supporting DVD
• 1 x Strix door hanger
• 1 x CABLE TIE BLACK
• 1 x ROG Strix stickers

Hệ điều hành khuyến nghị

• Windows® 10 64-bit

Chuẩn kích cỡ

• mATX Form Factor
