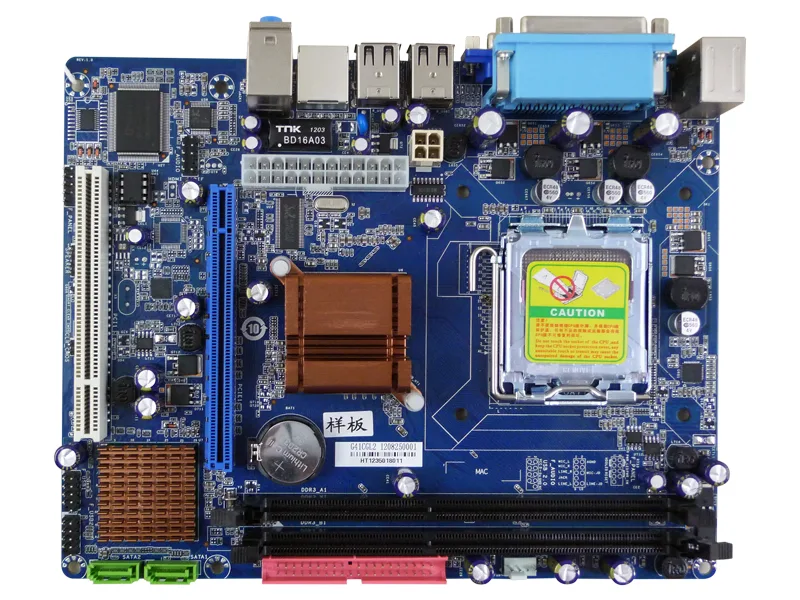

Mainboard Chipset G41

Model

G41BM

CPU

Intel® Socket 775 for Core™ 2 Duo/Core™ Duo/
Pentium™ 4/Pentium D/Celeron D Processors

Chipset

Intel® 82G41 + ICH7

Memory

2 x DIMM, Max. 8GB, DDR3 1333/1066 Hz

Dual Channel Memory Architecture

Graphic

Integrated Graphics Processor

Expansion Slots

1 x PCIe 2.0 x16

2 x PCI

Storage

4 x SATA 3Gb/s port(s)

LAN

Realtek® RTL8111D

Audio

Realtek® ALC 662 6-Channel High Definition Audio

USB Ports

6 x USB 2.0 port(s) (4 at back panel, 2 at mid-board)

Back I/O Ports

1 x PS/2 keyboard (purple)

1 x PS/2 mouse (green)

1 x LAN (RJ45) port(s)

4 x USB 2.0

1 x VGA

1 x COM

1 x LPT

3 x Audio jack(s)

Internal I/O Ports

1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

4 x SATA 3Gb/s connector(s)

Accessories

User's manual

I/O Shield

SATA 3Gb/s cable(s)

Form Factor

ATX Form Factor

9.6 inch x 7.5 inch (24.4 cm x 19 cm)
