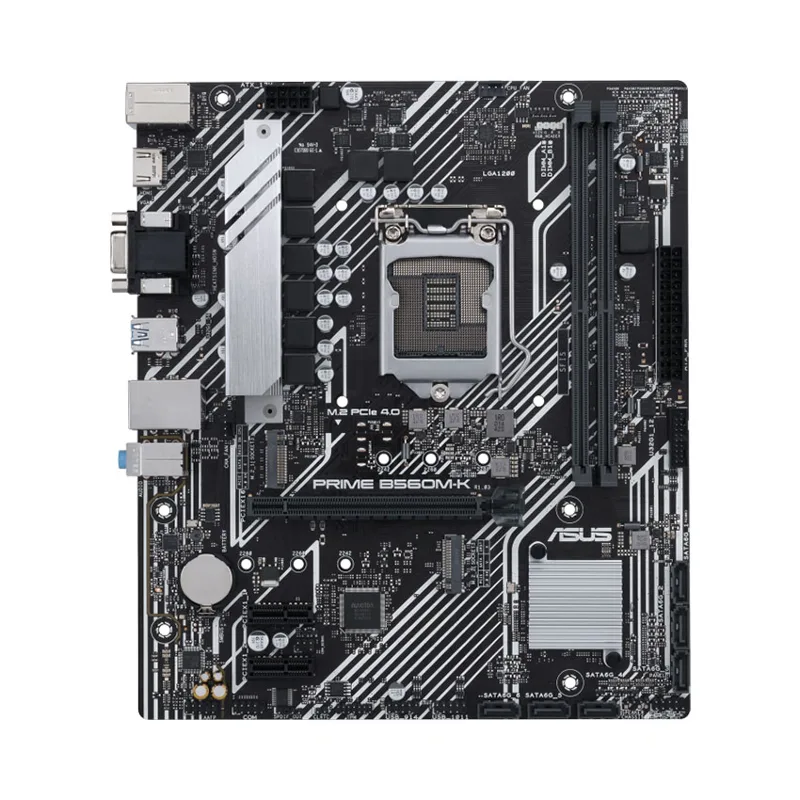

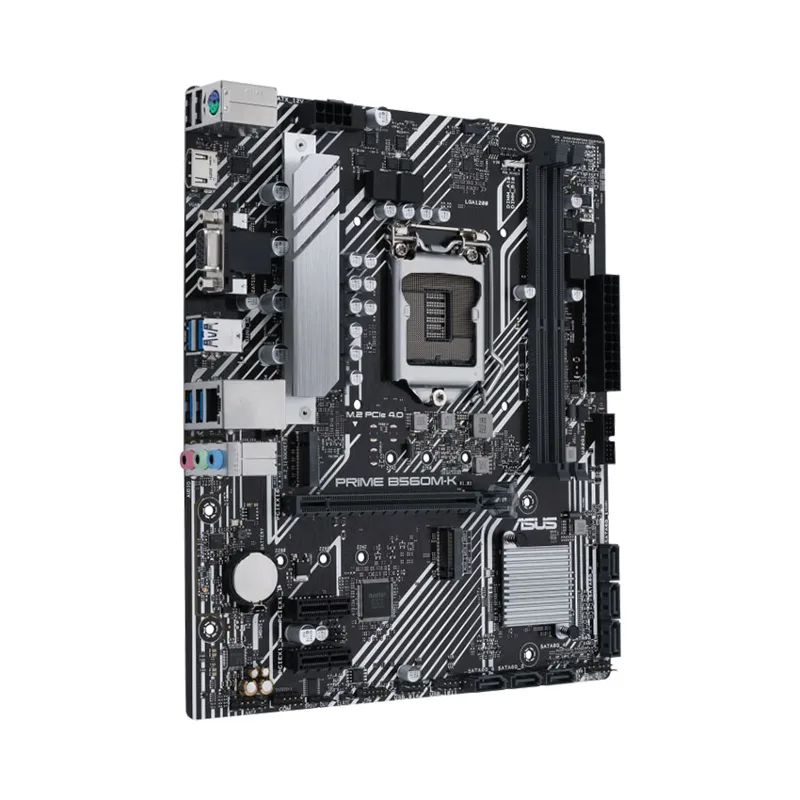

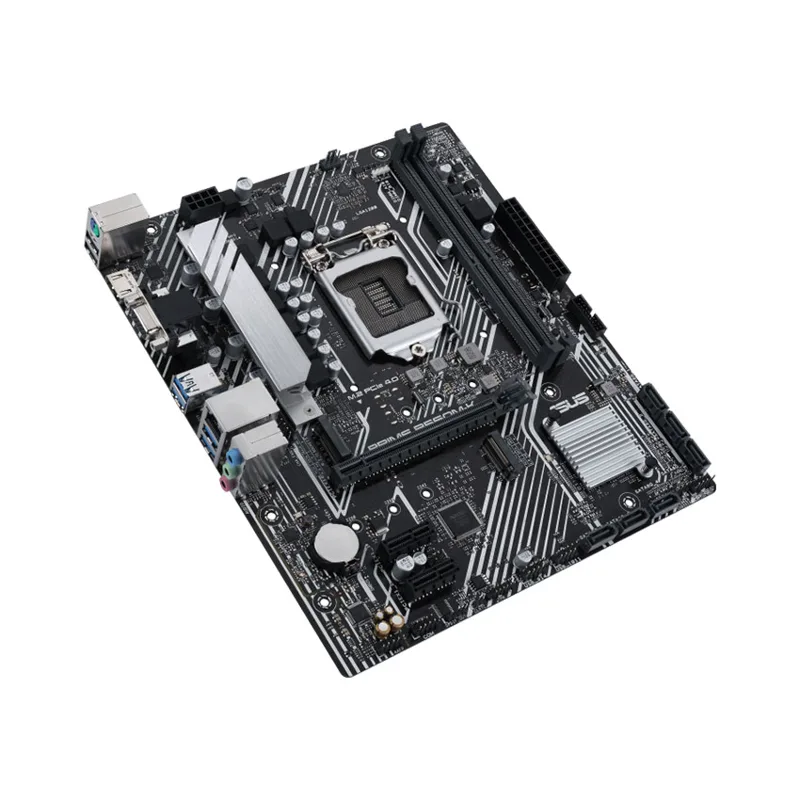

Mainboard Asus Prime B560M-K/CSM : Intel B560/2xDDR4/1*PCI-e x 16+2*PCI-e/6xSATA3 6Gb/s/2xM.2 /D-sub, HDMI

CPU hỗ trợ

Intel

Chipset

B560

RAM hỗ trợ

2 x DIMM SLOTS, tối đa 64GB DDR4
5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/
3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Ổ cứng hỗ trợ

Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel^®11^th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

- Only Intel^® 11^th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel^®B560 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*

6 x SATA 6Gb/s ports

Cổng kết nối (Internal)

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin Chassis Fan header
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin+12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 1 x RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

Cổng kết nối (Back Panel)

• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x D-Sub port
• 1 x HDMI™ port
• 1 x Intel^® I219-V 1Gb Ethernet
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

LAN / Wireless

1 x Intel® I219-V 1Gb Ethernet
ASUS LANGuard

Kích cỡ

microATX
9.6 inch x 8.3 inch(24.4cm x 21.1cm)
