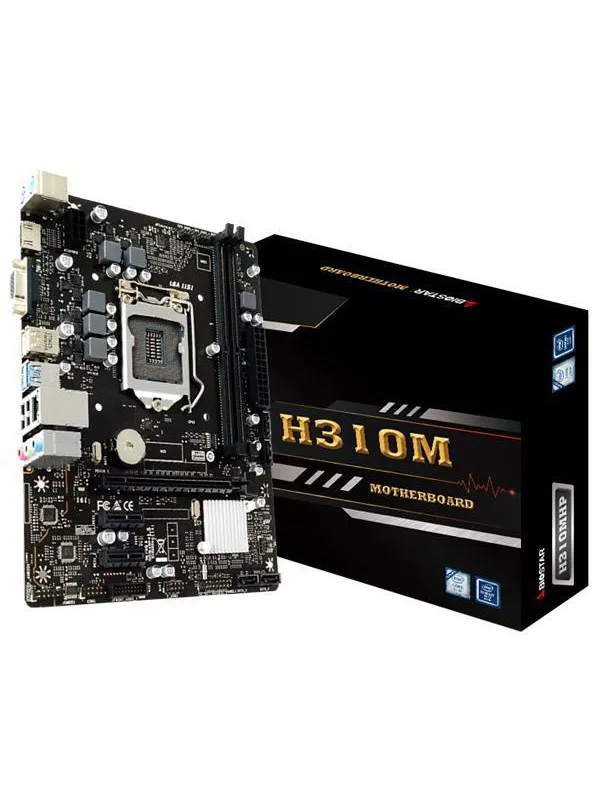

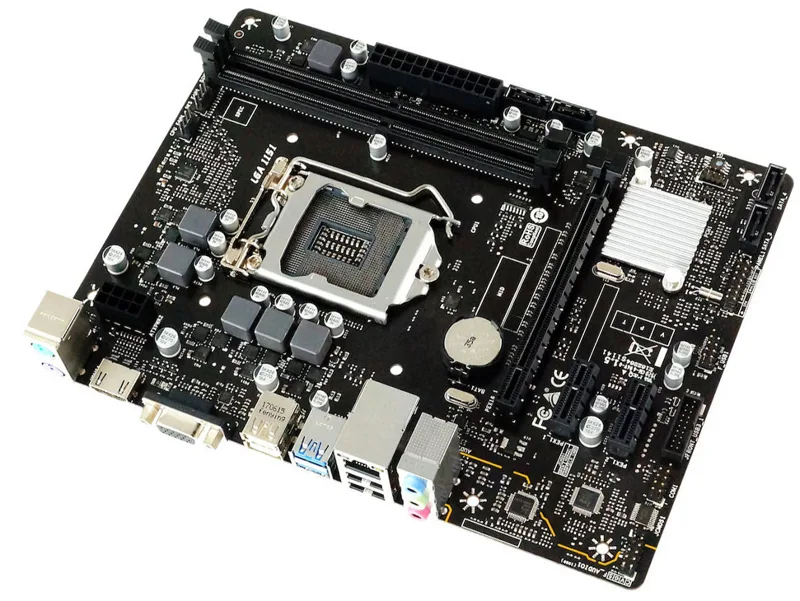

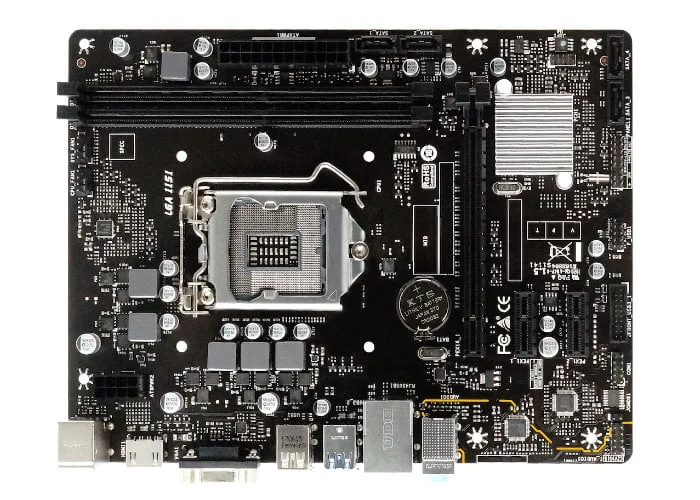

Mainboard Biostar H310MHP

Chipset

Intel H310

CPU SUPPORT

Socket 1151 for 9th / 8th Gen Intel® Core, Pentium and Celeron processors
Maximum CPU TDP (Thermal Design Power): 95Watt
* Please refer to www.biostar.com.tw for CPU support list.

MEMORY

Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666
2x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB Memory
Each DIMM supports non-ECC 4/8/16GB DDR4 module
* Please refer to www.biostar.com.tw for Memory support list.

INTEGRATED VIDEO

By CPU model
Supports DX12
Supports HDCP

STORAGE

4 x SATA3 Connector

LAN

RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

CODEC

ALC887
7.1 Channels, High Definition Audio
Support HD Audio

USB

4x USB 3.1(Gen1) port (2 on rear I/Os and 2 via internal header)
6x USB 2.0 port (4 on rear I/Os and 2 via internal header)

EXPANSION SLOT

2x PCIe 2.0 x1 Slot
1x PCIe 3.0 x16 Slot

REAR I/O

1x PS/2 Mouse Port
1x PS/2 Keyboard Port
1x HDMI Port
1x VGA Port
1x LAN Port
4x USB 2.0 Port
2x USB 3.1(Gen1) Port
3x Audio Jack

INTERNAL I/O

4x SATA III Connector
1x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1x USB 3.1(Gen1) Header (each header supports 2 USB 3.1(Gen1) ports)
1x 8-Pin Power Connector
1x 24-Pin Power Connector
1x CPU Fan Connector
1x System Fan Connector
1x Front Panel Header
1x Front Audio Header
1x Clear CMOS Header
1x COM Port Header

DIMENSION

Micro ATX Form Factor Dimension: 226mm x 171mm ( W x L )

OS SUPPORT

Support Windows 7/ 10(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice.

ACCESSORIES

2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
