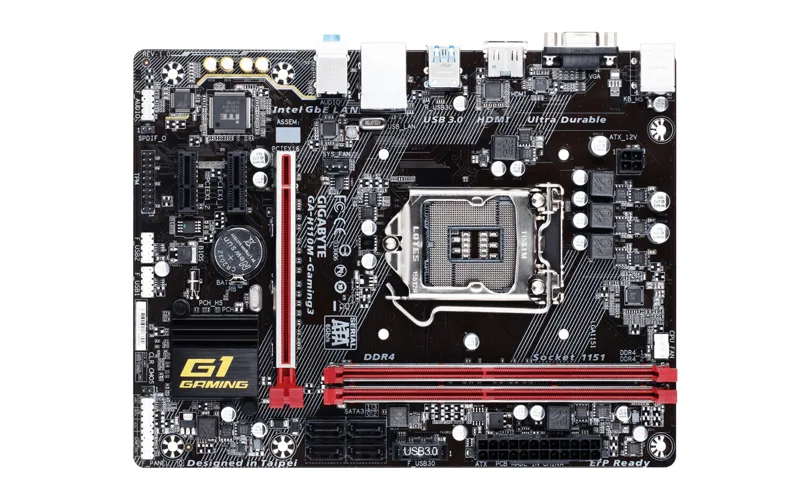

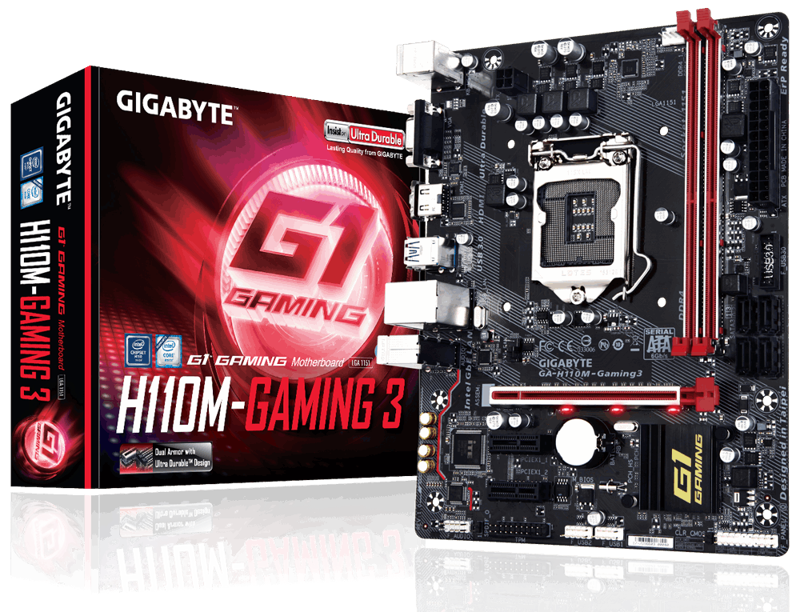

Mainboard Gigabyte H110M-Gaming 3 - Intel H110 chipset - Socket LGA 1151 có HDMI

Mô tả chi tiết

Tên sản phẩm

GIGABYTE H110M - Gaming 3

Hãng sản xuất

GIGABYTE

Chủng loại

H110M - Gaming 3

CPU hỗ trợ

Support for Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/ Intel^®Core™ i3 processors/Intel^® Pentium^® processors/ Intel^® Celeron^®processors in the LGA1151 package

Chipset

Intel^® H110 Express Chipset

Bộ nhớ trong

• 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
  Dual channel memory architecture
• Support for DDR4 2133 MHz memory modules

VGA onboard

Integrated Graphics Processor-Intel^® HD Graphics support

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
   Support for up to 2 displays at the same time
   Maximum shared memory of 512 MB

Âm thanh

1. Realtek^® ALC892 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
4. Support for S/PDIF Out

Khe mở rộng

• 1 x PCI Express x16 slot, running at x16
  (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
• 2 x PCI Express x1 slots

Chuẩn lưu trữ

Chipset:

   4 x SATA 6Gb/s connectors

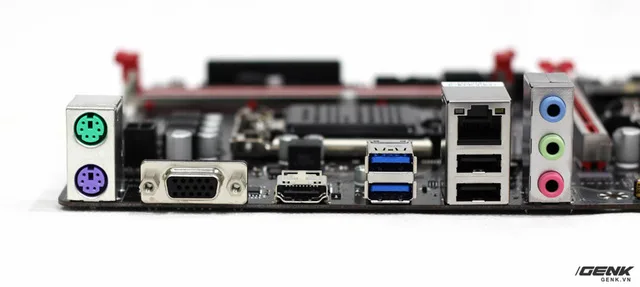

Cổng giao tiếp trước sau

1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port
4. 1 x HDMI port
5. 2 x USB 3.0/2.0 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks (Line In, Line Out, Mic In)

Kích thước

Micro ATX Form Factor; 22.6cm x 17.4cm
