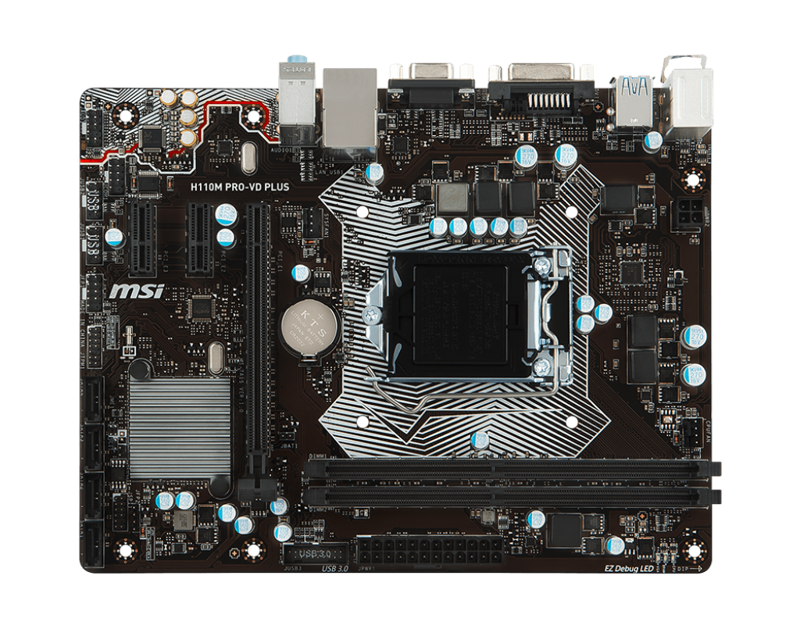

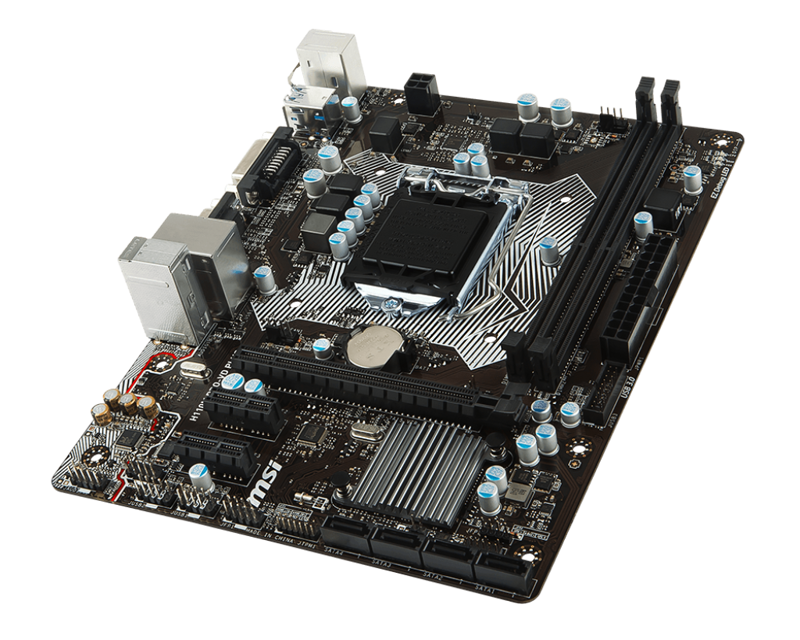

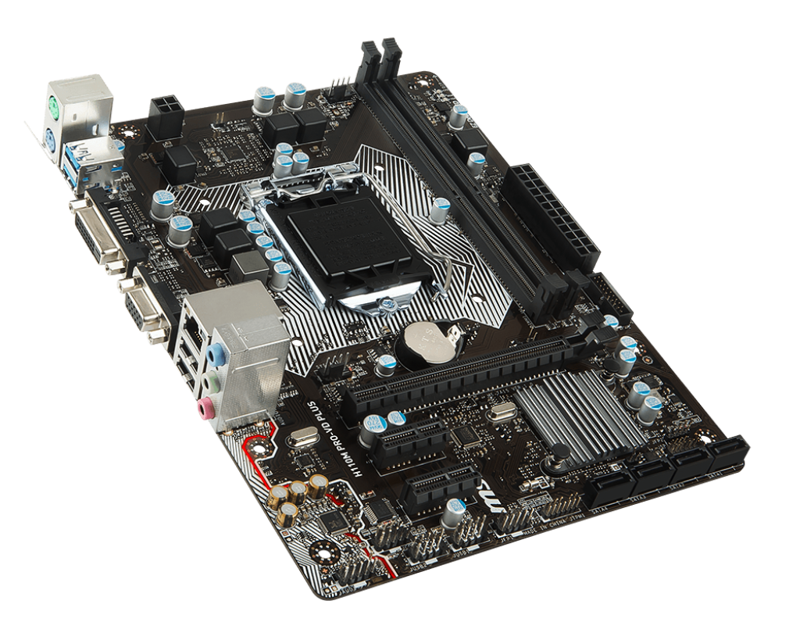

Mainboard MSI H110M PRO-VD Plus

Hãng sản xuất: MSI

Chủng loại: H110M PRO-VD PLUS

CPU hỗ trợ:  Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151

Chipset : Intel® H110 Chipset

Bộ nhớ trong

2 x DDR4 memory slots, support up to 32GB - Supports DDR4 2133 MHz
• Dual channel memory architecture
• Supports Non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

VGA onboard

1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
• 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz

Âm thanh

• Realtek® ALC887 Codec
• 7.1-Channel High Definition Audio

Khe mở rộng

• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 2.0 x1 slots

Chuẩn lưu trữ

Intel® H110 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

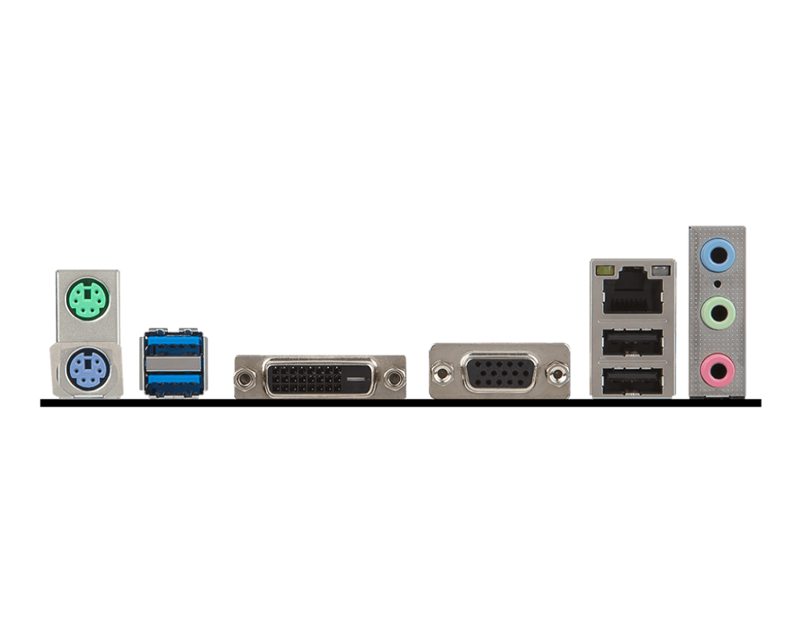

Cổng giao tiếp trước và sau

- 1 x PS/2 mouse port
- 1 x PS/2 keyboard port
- 2 x USB 2.0 ports
- 2 x USB 3.1 Gen1 ports
- 1 x DVI-D port
- 1 x VGA port
- 1 x LAN (RJ45) port
- 3 x audio jacks

Kích thước :  8.9 in. x 6.8 in. (22.6 cm x 17.3 cm) Micro-ATX Form Factor

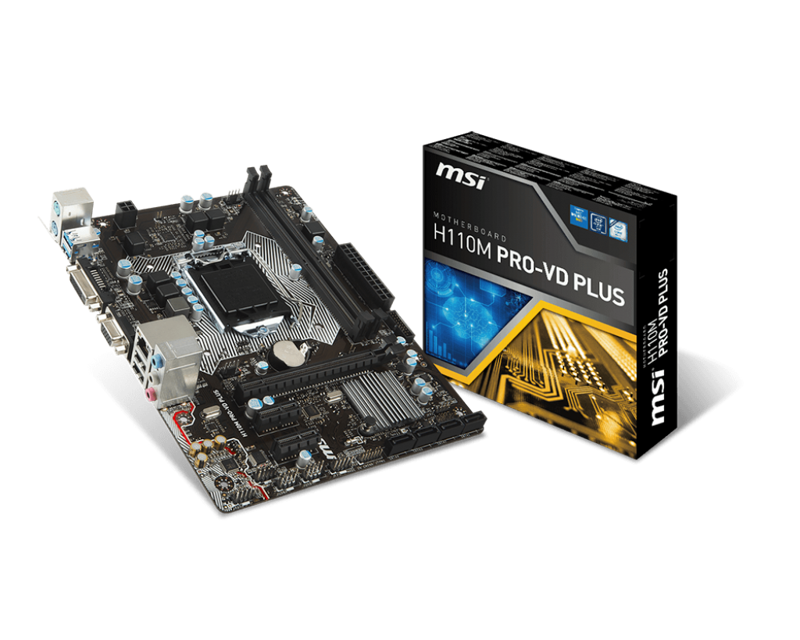

Phụ kiện đi kèm: Hộp , sách , đĩa cài , chặn main
