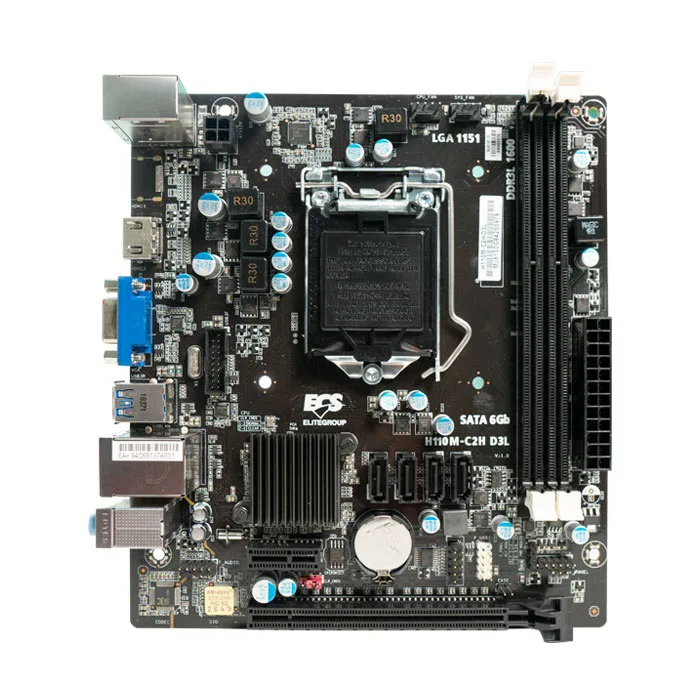

Mainboard PC ECS H110 tray chưa VAT

Sản phẩm

Bo mạch chủ

Tên Hãng

 ECS

Model

H110M

CPU hỗ trợ

Intel

Chipset

H110

RAM hỗ trợ

2 x DDR4 DIMM Tối đa 32GB, 2400/2133 MHz

Khe cắm mở rộng

• 1 x PCI Express x16 slot, running at x16
• 2 x PCI Express x1 slots

Ổ cứng hỗ trợ

4 x SATA 6Gb/s connectors

Cổng kết nối (Phía trong)

• 1 x 24-pin ATX main power connector
• 1 x 4-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 1 x CPU fan header
• 1 x system fan header
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB 3.0/2.0 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module (TPM) header
• 1 x Clear CMOS jumper

Cổng kết nối (Phía sau)

• 1 x PS/2 mouse port
• 1 x PS/2 Keyboard port
• 1 x D-Sub port
• 1 x HDMI
• 2 x USB 3.0/2.0 ports
• 2 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks (Line In, Line Out, Mic In)

LAN / Wireless

Realtek^® GbE LAN chip (10/100/1000 Mbit)
