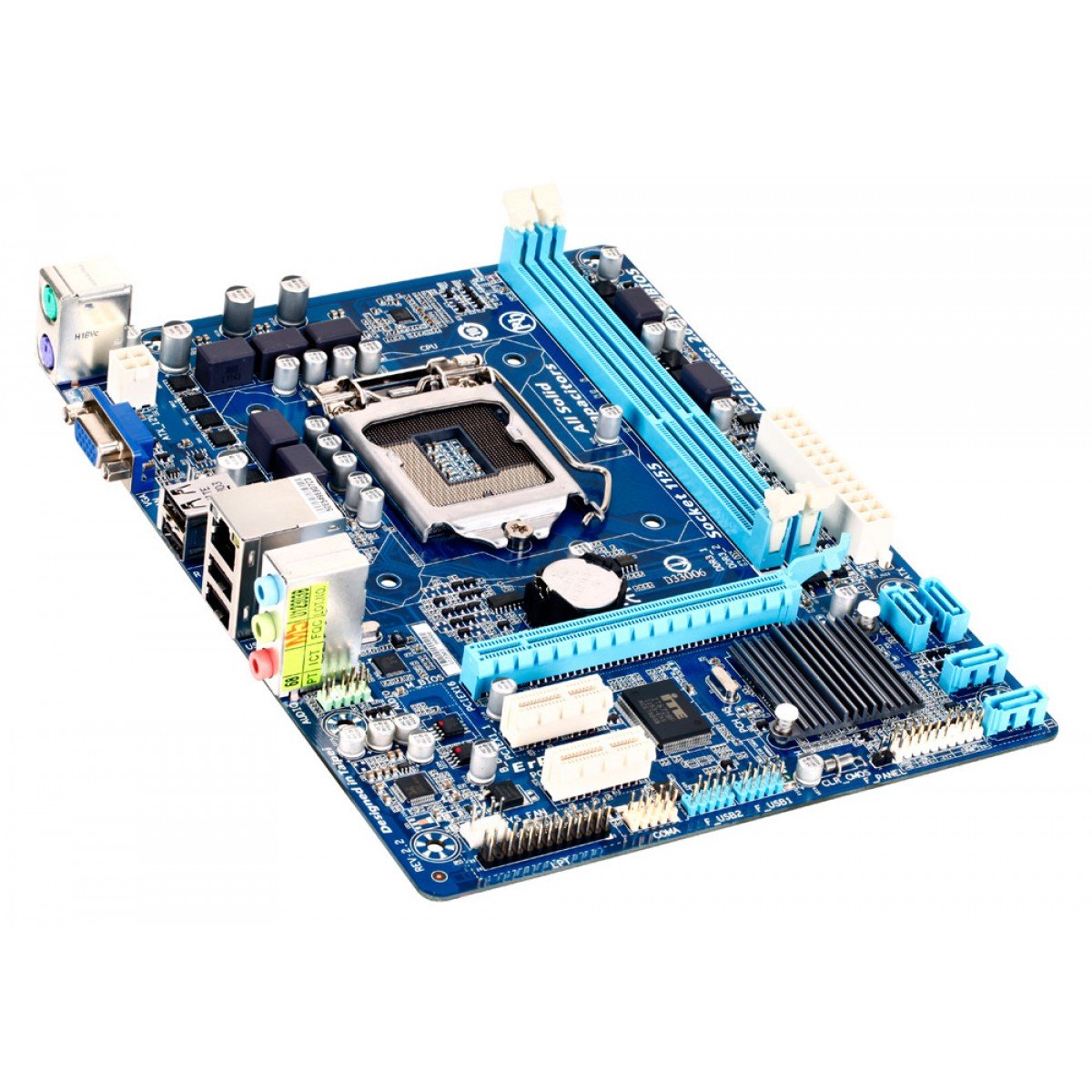

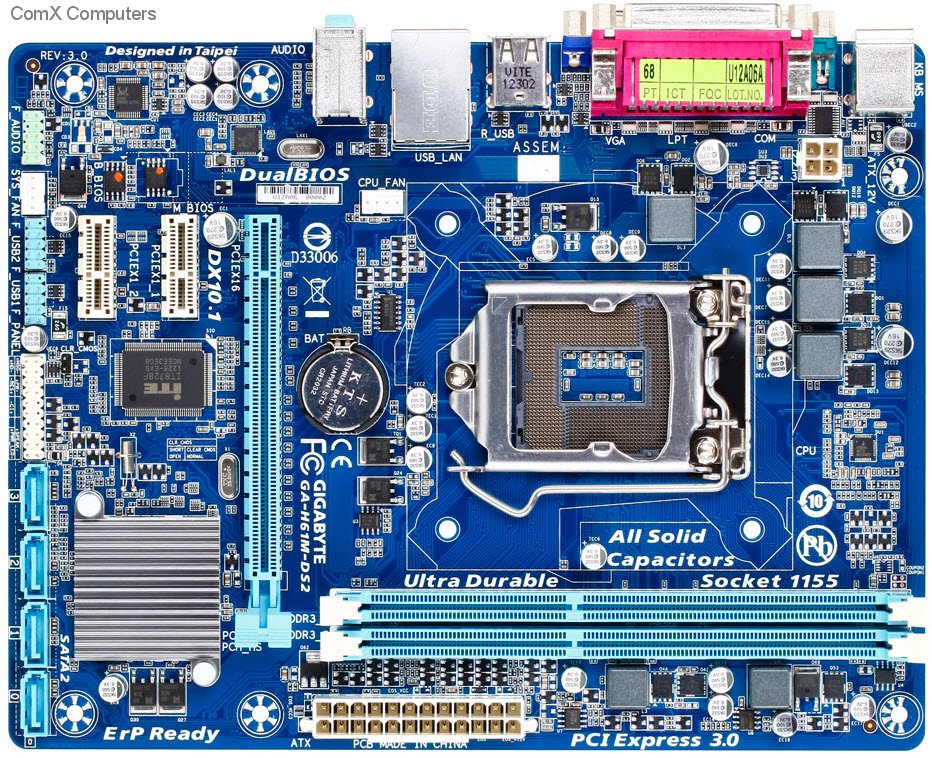

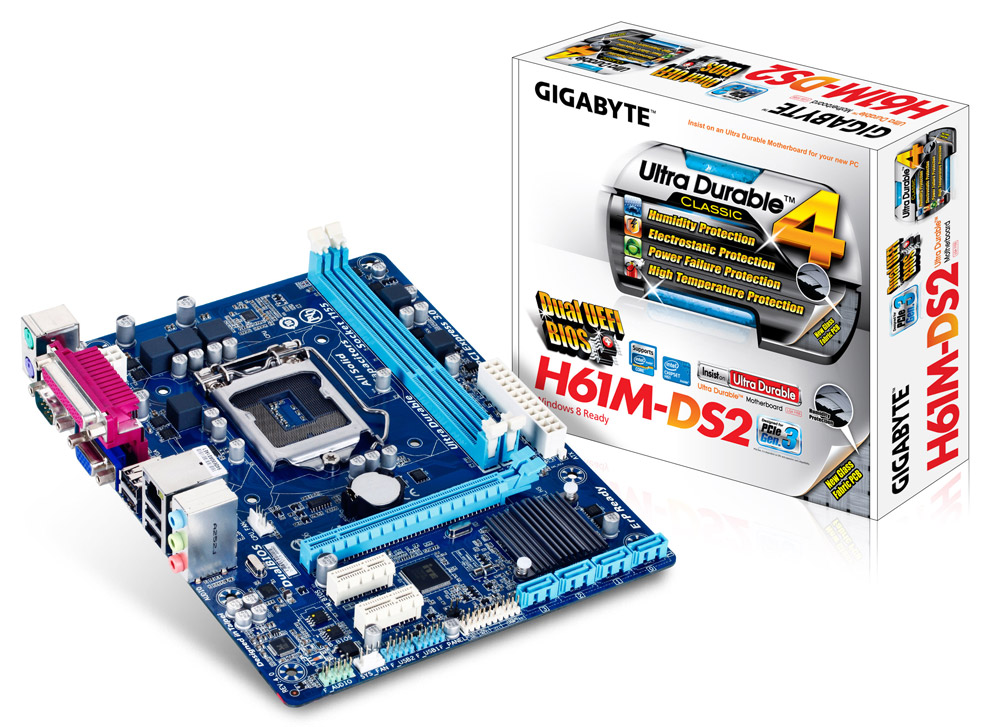

Main Gigabyte H61M-DS2

CPU

1. Support for Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/ Intel^® Core™ i3 processors/Intel^® Pentium^®processors/Intel^® Celeron^® processors in the LGA1155 package
2. L3 cache varies with CPU

Chipset

1. Intel^® H61 Express Chipset

Bộ nhớ

1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
   * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
2. Dual channel memory architecture
3. Support for DDR3 1333/1066/800 MHz memory modules
4. Support for non-ECC memory modules

Card đồ họa tích hợp

1. 1 x D-Sub port

Âm thanh

1. Realtek ALC887 audio codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN

1. 1 x Realtek RTL8111E chip (10/100/1000 Mbit)

Khe cắm mở rộng

1. 1 x PCI Express x16 slot, running at x16
   (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
   * PCIE Gen.3 is dependent on CPU and expansion card compatibility.
2. 2 x PCI Express x1 slots
   (The PCI Express x1 slots conform to PCI Express 2.0 standard.)

Giao diện lưu trữ

1. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

USB

1. Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Kết nối I/O bên trong

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 4 x SATA 3Gb/s connectors
4. 1 x CPU fan header
5. 1 x system fan header
6. 1 x front panel header
7. 1 x front panel audio header
8. 2 x USB 2.0/1.1 headers
9. 1 x parallel port header
10. 1 x serial port header
11. 1 x clearing CMOS jumper

Kết nối bảng phía sau

1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port
4. 4 x USB 2.0/1.1 ports
5. 1 x RJ-45 port
6. 3 x audio jacks (Line In/Line Out/Microphone)

Điều khiển I/O

1. iTE IT8728 chip

Theo dõi phần cứng

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU/System fan speed control
   * Whether the CPU/System fan speed control function is supported will depend on the CPU/System cooler you install.

BIOS

1. 2 x 32 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Tính năng duy nhất

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune
   * Available functions in EasyTune may differ by motherboard model.
8. Support for Smart 6™
9. Support for Auto Green
10. Support for ON/OFF Charge
11. Support for Cloud OC
12. Support for 3TB+ Unlock
13. Support for TouchBIOS
14. Support for Q-Share

Gói phần mềm

1. Norton Internet Security (OEM version)

Hệ điều hành

1. Support for Microsoft^® Windows 8/7/Vista/XP

Hệ số khuôn

1. Micro ATX Form Factor; 22.6cm x 17.4cm
