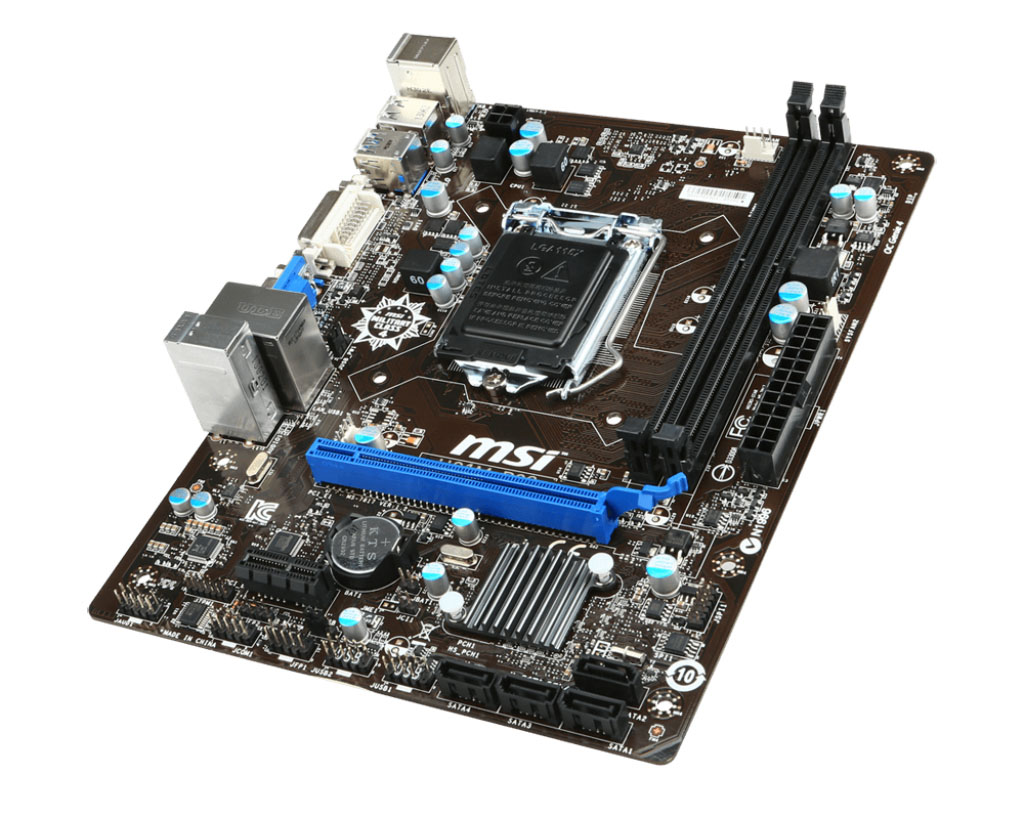

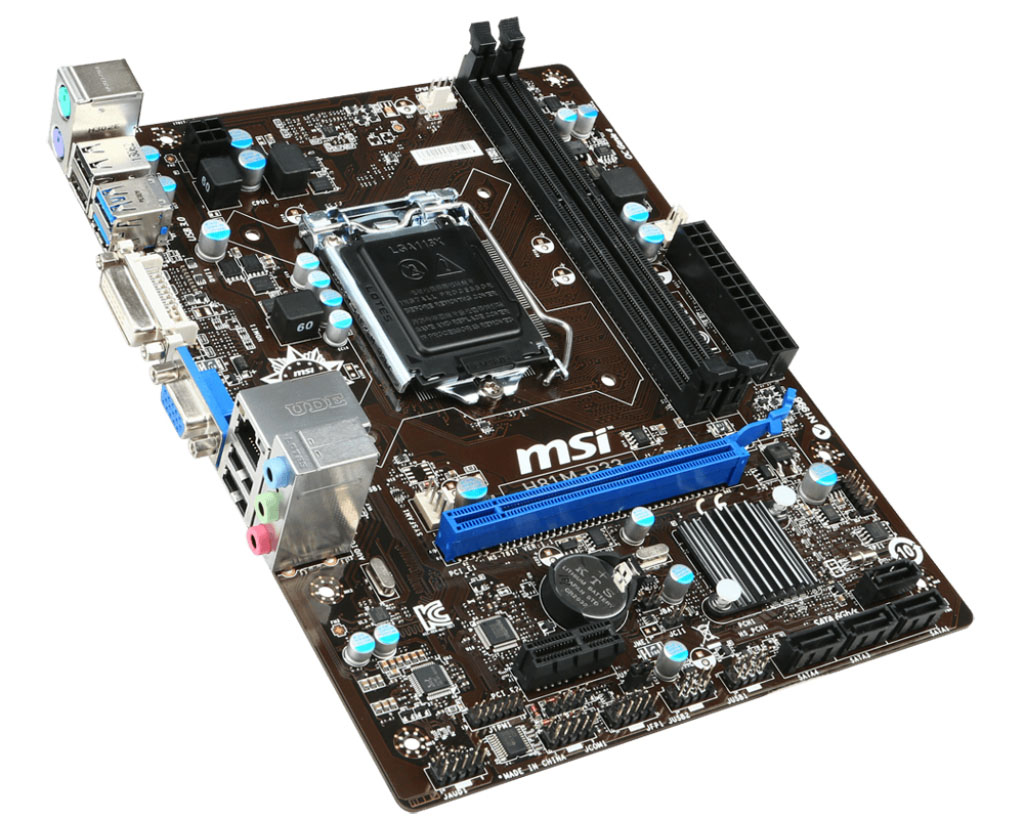

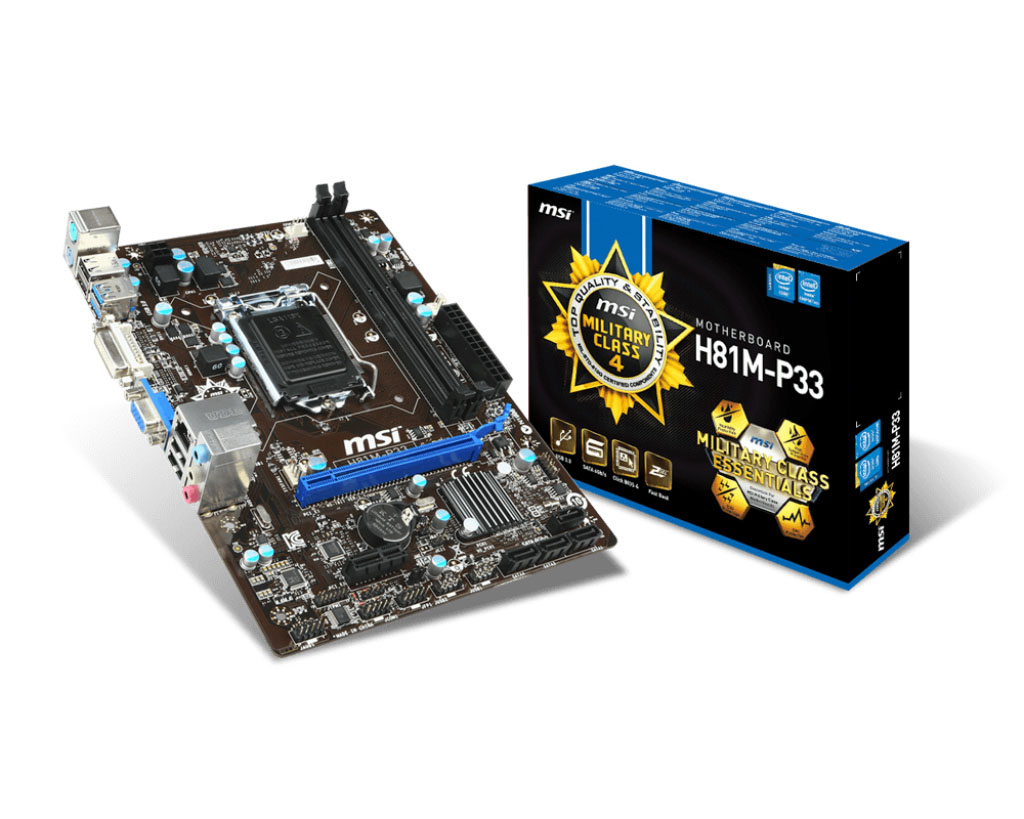

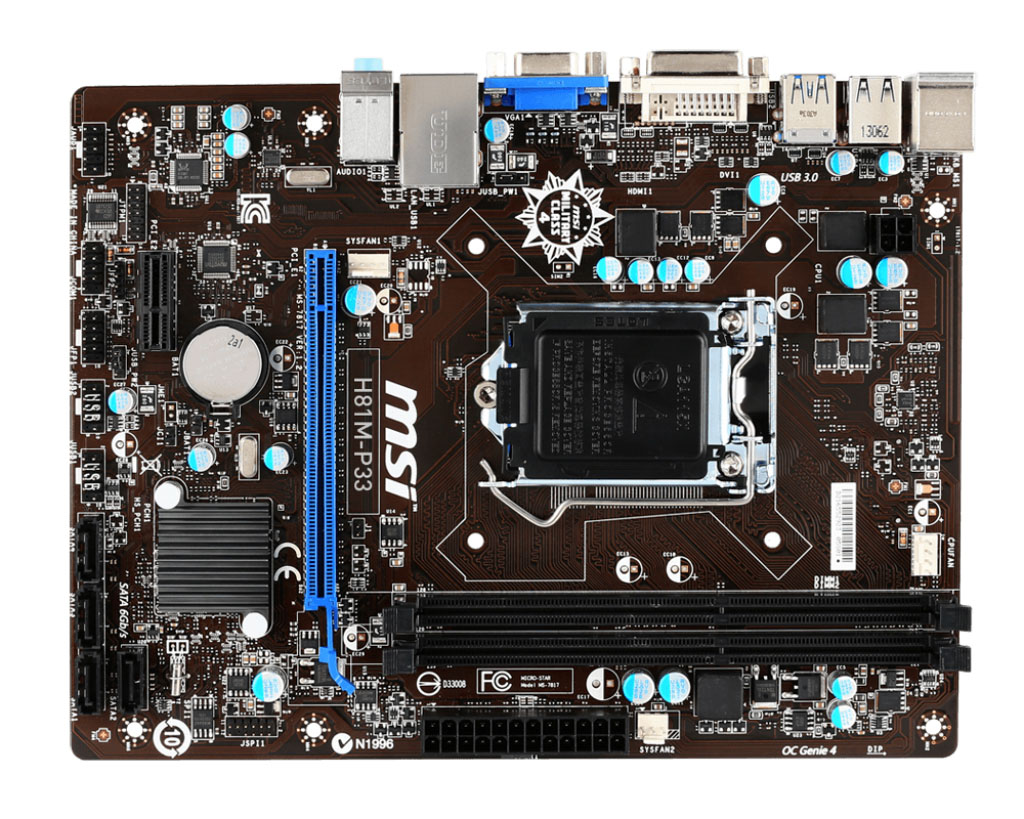

Hãng sản xuất: MSI
Model: H81M-P33
Chipset: Intel® H81
CPU hỗ trợ: 4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket
RAM hỗ trợ:
- Support 2 DDR3 DIMMs 1066/1333/1600 MHz, up to 16GB Max
- Supports Dual-Channel mode
Đồ họa: Bộ xử lý đồ họa tích hợp
- VGA output support : RGB port
- Hỗ trợ RGB với. độ phân giải tối đa 1920 x 1200 @ 60 Hz
- Bộ nhớ chia sẻ tối đa 1024 MB
- Hỗ trợ đồ họa Intel® InTru™ 3D, Quick Sync Video, Công nghệ video HD , Insider™
Lưu trữ :
• SATAIII controller integrated in Intel® H81 chipset
- Up to 6Gb/s transfer speed.
- Supports two SATAIII ports (SATA1~2) by H81
• SATAII controller integrated in Intel® H81 chipset
- Up to 3Gb/s transfer speed.
- Supports two SATAII ports (SATA3~4) by H81
Audio
- Chip integrated by Realtek® ALC887
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 spec
LAN: Supports LAN 10/100/1000 Fast Ethernet by Realtek® RTL8111G
Khe cắm mở rộng:
- 1 x PCIe x16 (chế độ x16, vàng)
- 2 x PCIe 2.0 x1
- 3 x PCI
- USB 2 x USB 3.0 ports on the back panel
- 6 x USB 2.0 ports
Kết nối I/O bên trong
- 1 x ATX 24-Pin power connector
- 1 x 4-pin ATX 12V power connector
- 2 x SATAIII connectors
- 2 x SATAII connectors
- 2 x USB 2.0 connectors
- 1 x Serial port connector
- 1 x Trusted Platform Module (TPM) header
- 1 x Chasis intrusion connector
- 1 x Front Panel Audio connector

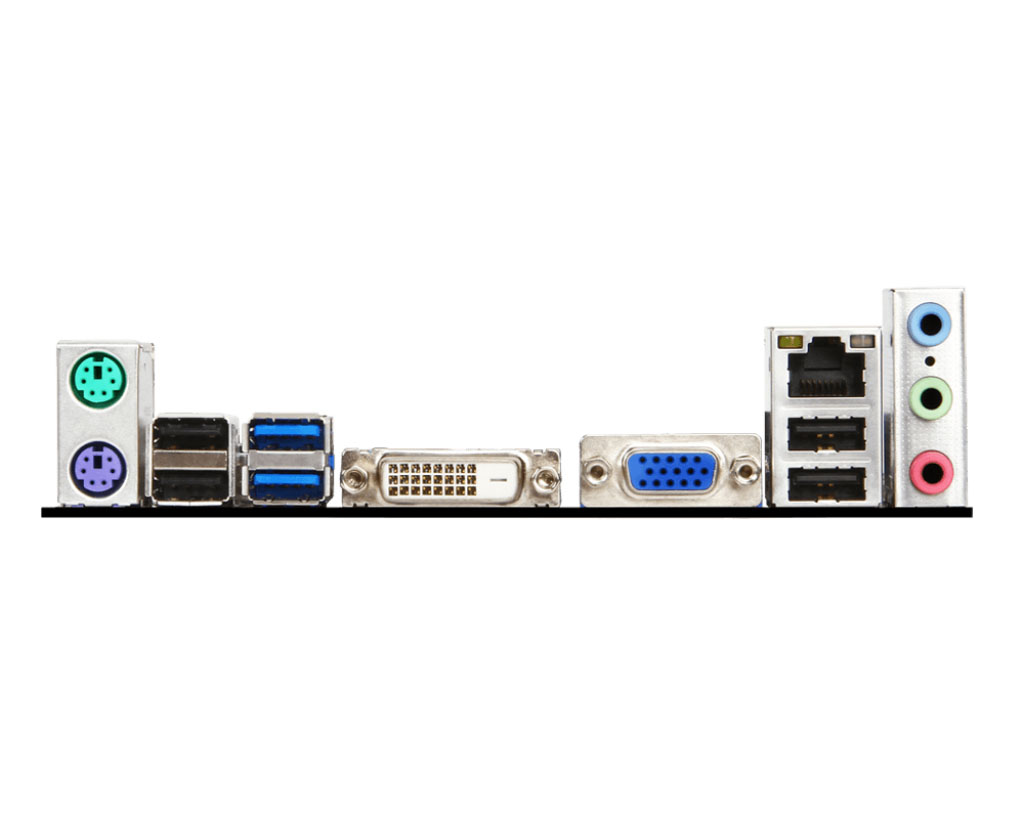

Kết nối bảng phía sau
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 4 x USB 2.0 ports
- 2 x USB 3.0 ports
- 1 x RJ45 LAN Jack
- 1 x 3 in 1 audio jack
- 1 x Graphics card port
- 1 x DVI-I port
BIOS
- The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
- The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Hệ điều hành hỗ trợ: Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit
Kích thước: M-ATX Form Factor; 22.6 cm x 17.3 cm
