MÔ TẢ CHI TIẾT
|
Hãng sản xuất
|
Asus
|
|
Chủng loại
|

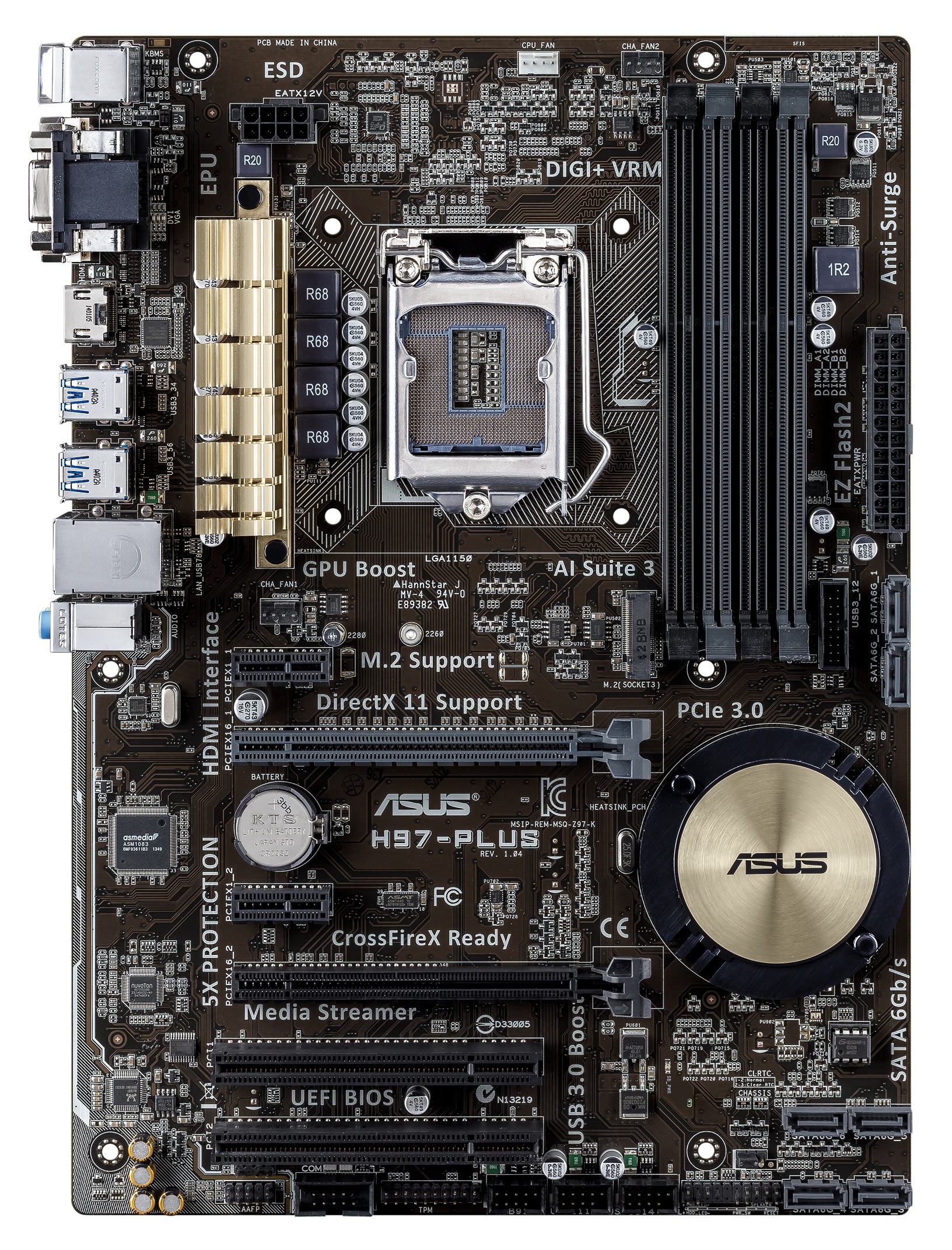

ASUS H97-PLUS
|
|
CPU hỗ trợ
|
Intel® Socket 1150 for the 5th/New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
|
|
Chipset
|
Intel® H97-PLUS
|
|
Bộ nhớ trong
|
4 x DIMM, Max. 32GB, DDR3 1600/1333 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
|
|
VGA
|
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneously
|
|
Âm thanh
|
Realtek® ALC887 8-Channel High Definition Audio CODEC featuring Crystal Sound 2*4
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs |
|
Mạng
|
Realtek® 8111GR, 1 x Gigabit LAN
|
|
Khe mở rộng
|
1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
1 x PCIe 2.0 x16 (max at x4 mode, black) *1
2 x PCIe x1
2 x PCI
|
|
Chuẩn lưu trữ
|
Intel® H97 chipset :
1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)*2
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *3
|
|
Cổng giao tiếp trước và sau
|
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
2 x USB 2.0
3 x Audio jack(s)
|
|
Kích thước
|
ATX Form Factor
12 inch x 8.6 inch ( 30.5 cm x 21.8 cm )
|
|
Phụ kiện đi kèm
|
Hộp / Sách hướng dẫn sử dụng / Đĩa Driver / Cable tín hiệu Sata / Chặn main
|

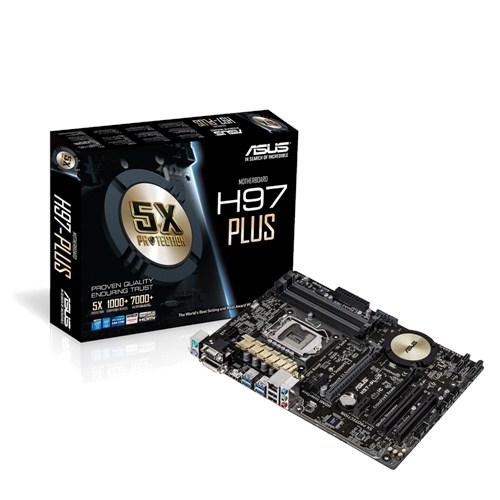

GIỚI THIỆU SẢN PHẨM
- CPU: (Max Support) i3/i5/i7 Haswell, Haswell Refresh. Broadwell
- Chipset: Intel® H97
- Memory: Dual Channel Memory Architecturel4 x DIMM, Max. 32GB, DDR3 1600/1333 MHz
- Audio: Realtek® ALC887 8-Channel High Definition Audio CODEC featuring Crystal Sound 2
- IN/OUT: 1 x DVI-D, 1 x D-Sub, 1 x HDMI, 1 x LAN (RJ45) port(s), 4 x USB 3.0 (blue), 2 x USB 2.0, 1 x TPM header, 1 x LPT header, 1 x COM port(s) connector(s)
- Expansion Slots:1 x PCIe 3.0/2.0 x16 (x16 mode, gray), 1 x PCIe 2.0 x16 (x4 mode, black), 2 x PCI
- LAN: Intel® I218V, 1 x Gigabit LAN Controller(s)
- Form Factor: m-ATX
- Điểm nhấn: ASUS 5X Protection, ASUS EPU, ASUS Digital Power Design, ASUS Exclusive Features: MemOK! AI Suite 3, Ai Charger+, Anti-Surge, ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface, USB 3.0 Boost, Disk Unlocker, Turbo LAN, Interactive HomeCloud, ASUS Quiet Thermal Solution, ASUS EZ DIY, ASUS Q-Design
