| Chipset |
Intel H110 |
| CPU SUPPORT |
7th & 6th Gen Intel® Core™ i7 LGA 1151 Processor
7th & 6th Gen Intel® Core™ i5 LGA 1151 Processor
7th & 6th Gen Intel® Core™ i3 LGA 1151 Processor
7th & 6th Gen Intel® Pentium® LGA 1151 Processor
7th & 6th Gen Intel® Celeron® LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power) : 91Watt |
| MEMORY |
Support Dual Channel DDR3L 1866(OC)/ 1600/ 1333 MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 16GB Memory |
| EXPANSION SLOT |
1 x PCI-E x16 3.0 Slot
1 x PCI-E x1 2.0 Slot |
| STORAGE |
4 x SATA3 Connector |
| USB |
2 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
2 x USB 2.0 Header |
| LAN |
Realtek RTL8111H - 10/100/1000 Controller |
| INTEGRATED VIDEO |
By CPU model
Supports DX12
Supports HDCP |
| CODEC |
Realtek ALC887 8-Channel HD Audio |

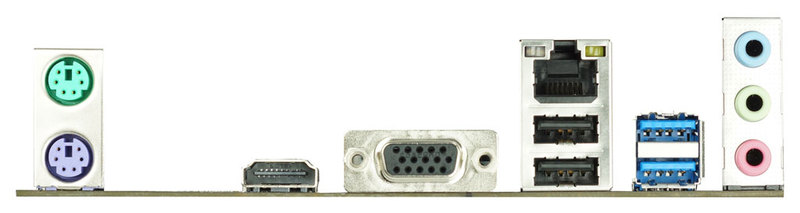

| REAR I/O |
1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.0 Port
2 x USB 2.0 Port
1 x HDMI Connector, resolution up to 3840 x 2160 @30Hz, compliant with HDMI 1.4a
1 x VGA Port, resolution up to 1920 x 1200 @60Hz
1 x RJ-45 Port
3 x Audio Connector |
| INTERNAL I/O |
1 x USB 3.0 Header
2 x USB 2.0 Header
4 x SATA3 6Gb/s Connector
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
1 x System Fan Header
1 x TPM Header |
| H/W MONITORING |
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring |
| DIMENSION |
Micro ATX Form Factor Dimension: 19cm x 17cm ( W x L ) |
| OS SUPPORT |
Support Windows 7 / 8.1(x64) / 10(x64) |
| BUNDLE SOFTWARE |
BullGuard
BIO-Remote2
Smart Speed LAN |
| ACCESSORIES |
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide |
| FEATURES |
Supports Solid capacitor
Supports BIOS-Flasher
Supports Charger Booster
Supports BIOS Online Update |
