Mô tả chi tiết
|
|
Tên sản phẩm
|

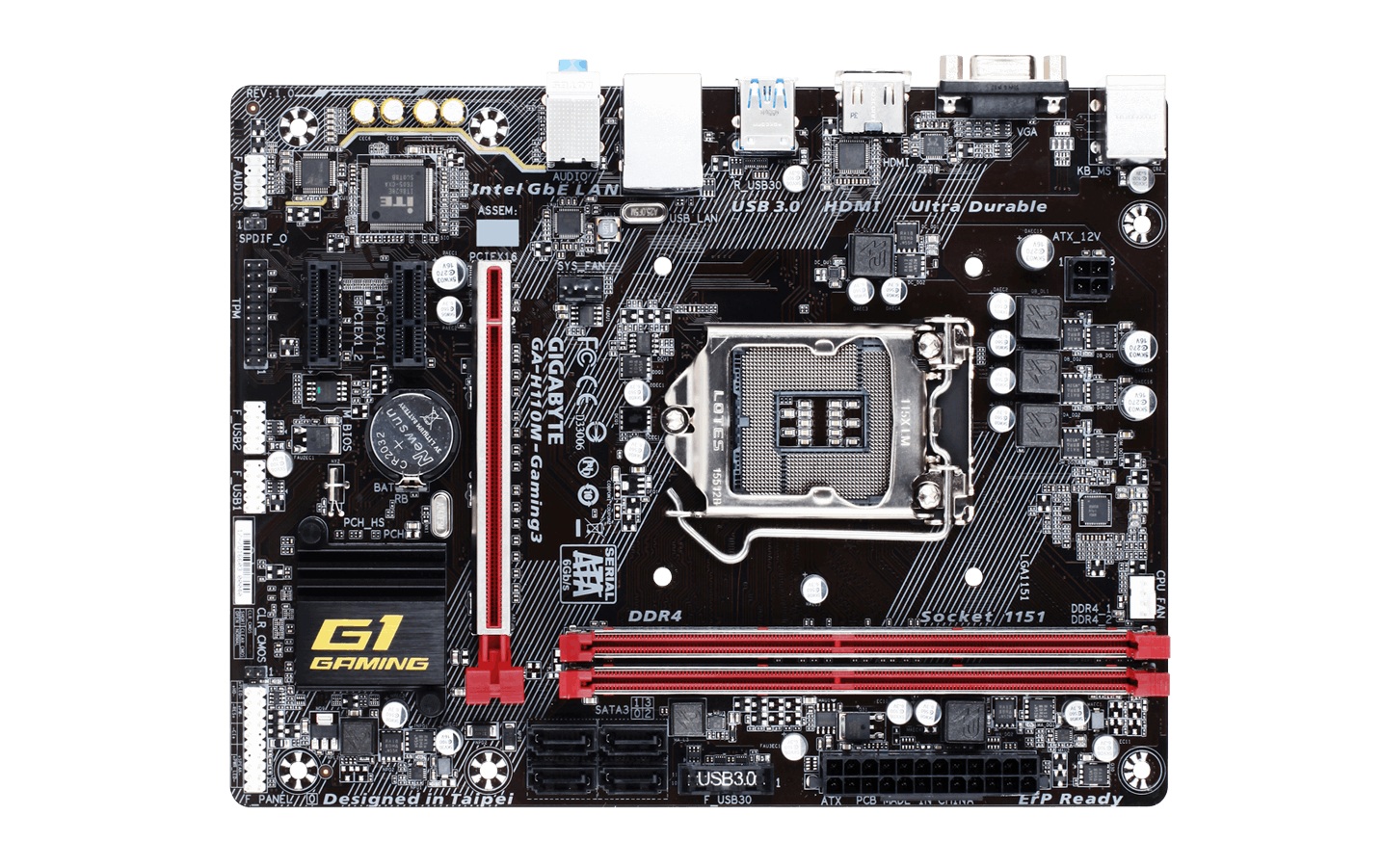

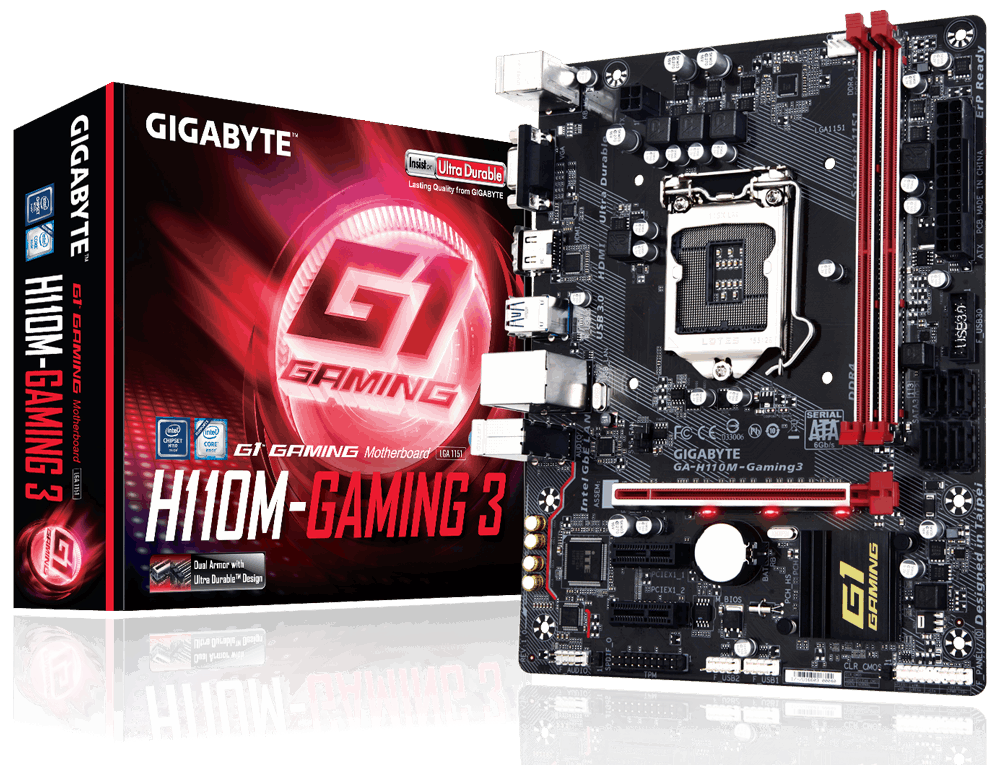

GIGABYTE H110M - Gaming 3
|
|
Hãng sản xuất
|
GIGABYTE
|
|
Chủng loại
|
H110M - Gaming 3
|
|
CPU hỗ trợ
|
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel®Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron®processors in the LGA1151 package
|
|
Chipset
|
Intel® H110 Express Chipset
|
|
Bộ nhớ trong
|
- 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
- Support for DDR4 2133 MHz memory modules
|
|
VGA onboard
|
Integrated Graphics Processor-Intel® HD Graphics support
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
Support for up to 2 displays at the same time
Maximum shared memory of 512 MB
|
|
Âm thanh
|
- Realtek® ALC892 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
- Support for S/PDIF Out
|
|
Khe mở rộng
|
- 1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
- 2 x PCI Express x1 slots
|
|
Chuẩn lưu trữ
|
Chipset:
4 x SATA 6Gb/s connectors
|
|

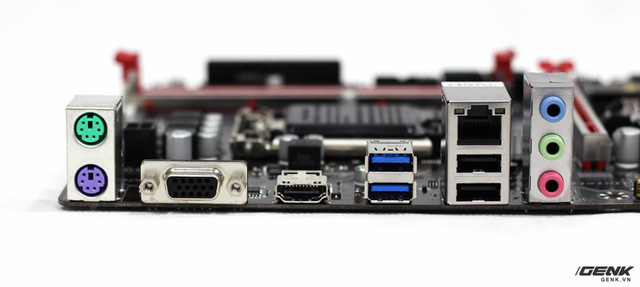

Cổng giao tiếp trước sau
|
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x D-Sub port
- 1 x HDMI port
- 2 x USB 3.0/2.0 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks (Line In, Line Out, Mic In)
|
|
Kích thước
|
Micro ATX Form Factor; 22.6cm x 17.4cm
|
