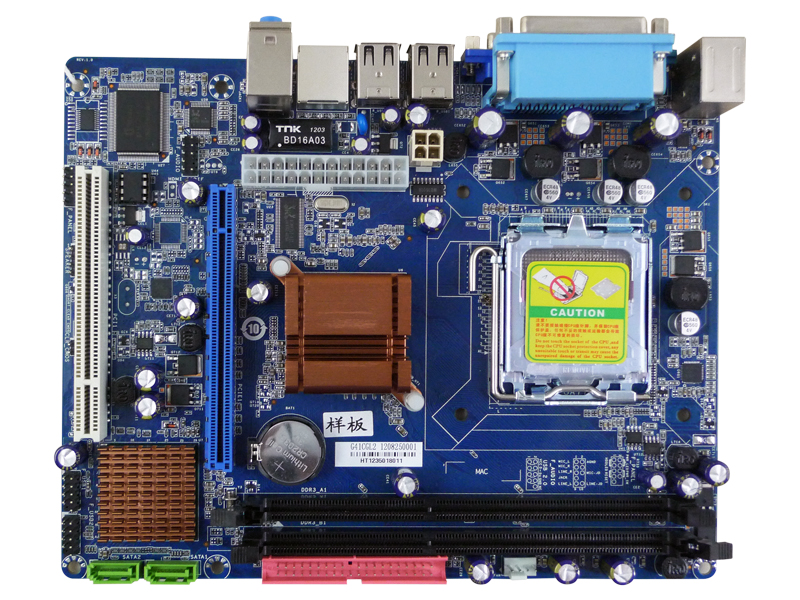

Model
|
G41BM
|
|
CPU
|
Intel® Socket 775 for Core™ 2 Duo/Core™ Duo/
Pentium™ 4/Pentium D/Celeron D Processors
|
|
Chipset
|
Intel® 82G41 + ICH7
|
|
Memory
|
2 x DIMM, Max. 8GB, DDR3 1333/1066 Hz
|
|
Dual Channel Memory Architecture
|
|
Graphic
|
Integrated Graphics Processor
|
|
Expansion Slots
|
1 x PCIe 2.0 x16
|
|
|
|
2 x PCI
|
|
Storage
|
4 x SATA 3Gb/s port(s)
|
|
LAN
|
Realtek® RTL8111D
|
|
Audio
|
Realtek® ALC 662 6-Channel High Definition Audio
|
|
USB Ports
|
6 x USB 2.0 port(s) (4 at back panel, 2 at mid-board)
|
|
Back I/O Ports
|
1 x PS/2 keyboard (purple)
|
|
1 x PS/2 mouse (green)
|
|
1 x LAN (RJ45) port(s)
|
|
4 x USB 2.0
|
|
1 x VGA
|
|
1 x COM
|
|
1 x LPT
|
|
3 x Audio jack(s)
|
|
Internal I/O Ports
|
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
|
|
4 x SATA 3Gb/s connector(s)
|
|
Accessories
|
User's manual
|
|
I/O Shield
|
|
SATA 3Gb/s cable(s)
|
|
Form Factor
|
ATX Form Factor
|
|
9.6 inch x 7.5 inch (24.4 cm x 19 cm)
|
